Custom Auto-Soldering Machine for Piezoelectric Sensors

Toki Automation has engineered a high-throughput, customized auto-soldering solution specifically designed for high-precision piezoelectric sensor assembly. By integrating the industry-leading Hakko auto-soldering system, this machine bridges the gap between manual precision and high-volume industrial automation.

Key Technical Specifications

• High Capacity: Processes up to 200 piezoelectric sensors per cycle.
• Modular Loading: Utilizes 4 magazines; each holds 10 jigs (5 sensors per jig).
• Precision Soldering: Dual soldering checkpoints featuring the Hakko automated iron system.
• Quality Assurance: Integrated camera inspection and part detection for 100% fixture validation.
• Optimized Workflow: Efficiency Meets Precision

1. Ergonomic Briefcase-Style Loading

The system features a semi-automated workflow designed for operator ease. Sensors are loaded into jigs using a precision alignment template for wire positioning. These jigs are then housed in briefcase-style magazines, a design choice that ensures ergonomic handling and rapid machine loading/unloading.

2. Intelligent Jig Handling & Detection

Once the cycle initiates, the machine’s internal conveyor takes over. The system features smart magazine leveling:

• Partial Fill Detection: The machine automatically detects partially filled magazines and self-levels to fetch the next available jig.
• Automated Logistics: Sensors recognize empty loading points and full unloading points, ensuring a seamless, continuous cycle without manual intervention.

3. Advanced Vision Inspection & Validation

Before the soldering process begins, an integrated camera inspection system performs a comprehensive sweep. It validates that every slot is correctly filled and aligned. If a discrepancy is found, the operator is notified immediately, preventing wasted materials and soldering errors.

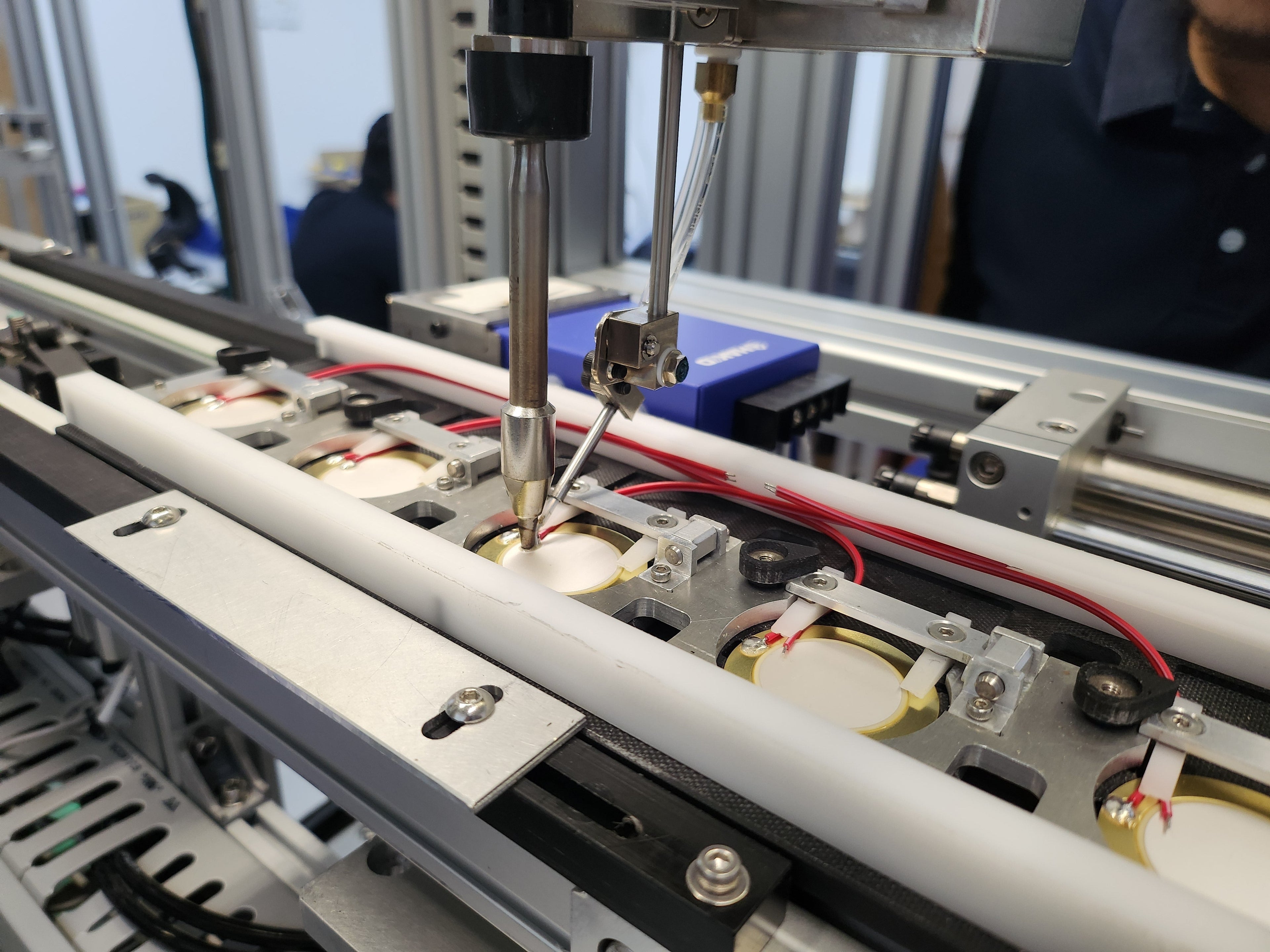

4. Precision Soldering with Hakko Technology

The heart of the machine is the Hakko auto-soldering system. At two dedicated checkpoints, the system:

• Automatically cleans the soldering tips to prevent flux buildup.
• Feeds solder wire at precise, pre-determined points.
• Ensures consistent thermal transfer for sensitive piezoelectric components.

5. Automated Cycle Completion

Post-soldering, jigs are automatically reloaded into the magazines. This "closed-loop" handling allows operators to remove finished batches and reload the next cycle with minimal downtime.

Why Choose Toki Automation’s Custom Solutions?

Our custom soldering machines are built for manufacturers who require traceability, repeatability, and high yield. By automating the delicate process of piezoelectric sensor soldering, we reduce human error and significantly increase parts-per-hour (PPH) metrics.

Contact Toki Automation today to discuss your custom sensor assembly requirements.
