Low/Medium Torque Series For High Precision Applications

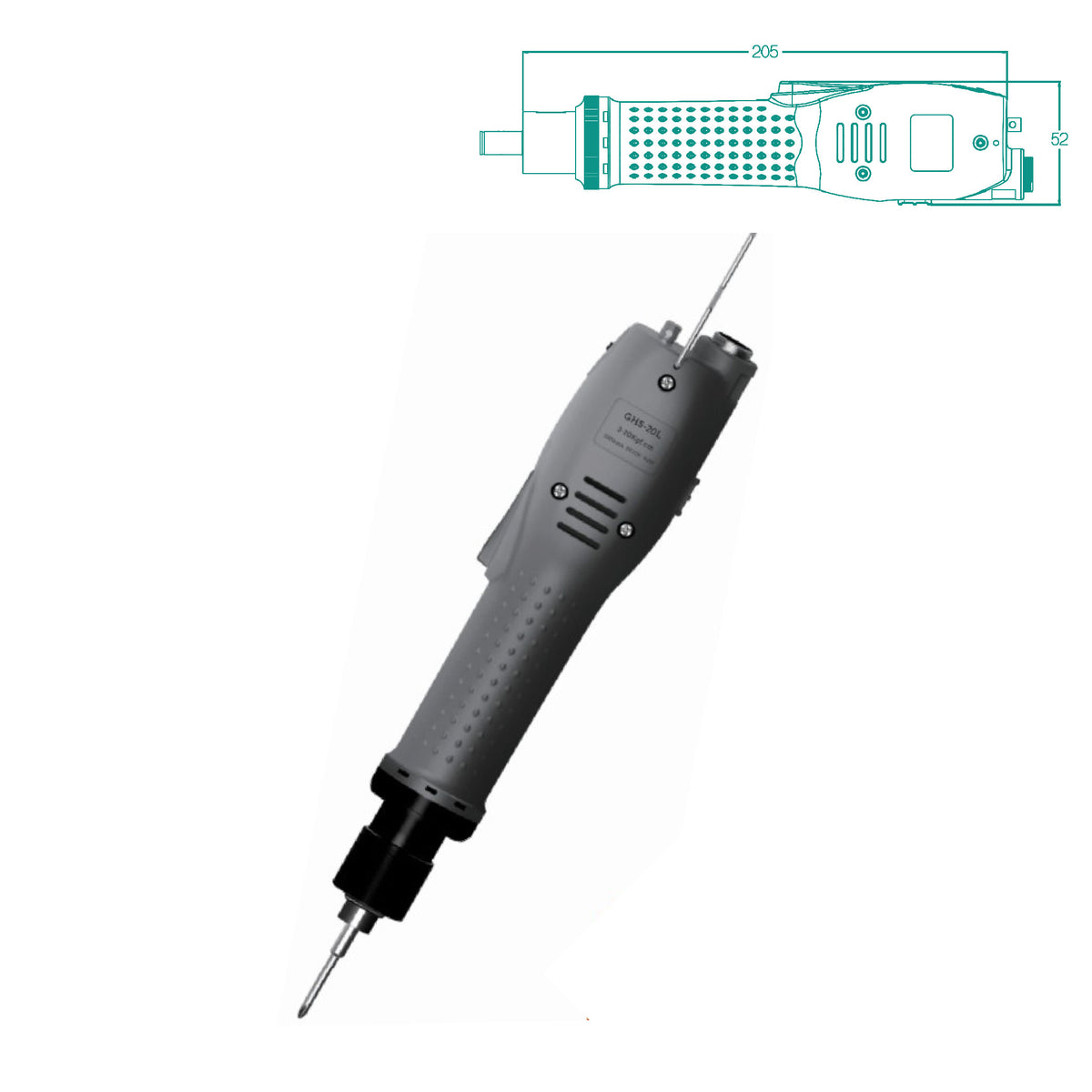

Bakon Brushless Electric Starter Screwdriver
GH-10L/KL | GH-15L/KL | GH-20L/KL | GH-25L
Bakon industrial electric screwdrivers are designed for use in assembly lines and manufacturing. Designed to drive screws quickly, precisely and accurately each time, these electric screwdrivers are suitable for repetitive fastening work where controlled torque and consistency is required.
- High-performance brushless motor with long service life
- Low vibration, noise & electromagnetic interference
- Fast magnetic induction braking system
- Compact, lightweight & energy-efficient design
- Precise, adjustable torque control
- Dual push-start & push-down modes
- Designed for automated screw assembly with signal output
- Suitable for various industrial applications
- ESD option available
Specifications
| Screwdriver Model | GH-10L/KL |
| Input Voltage (V) | DC-30 |
| Torque Accuracy | ±3% |
| Torque (kgf.cm) | 1~10 |
| Torque (Nm) | 0.1~0.98 |
| Speed (rpm) |
1000/1800 |
| Screwdriver Model | GH-15L/KL |
| Input Voltage (V) | DC-30 |
| Torque Accuracy | ±3% |
| Torque (kgf.cm) | 2~15 |
| Torque (Nm) | 0.2~1.57 |
| Speed (rpm) |
1000/1800 |
| Screwdriver Model | GH-20L/KL |
| Input Voltage (V) | DC-30 |
| Torque Accuracy | ±3% |
| Torque (kgf.cm) | 3~20 |
| Torque (Nm) | 0.29~1.96 |
| Speed (rpm) |
1000/1400 |
| Screwdriver Model | GH-25L |
| Input Voltage (V) | DC-30 |
| Torque Accuracy | ±3% |
| Torque (kgf.cm) | 5~25 |
| Torque (Nm) | 0.49~2.45 |
| Speed (rpm) |
1000 |
