Accurate Torque Measurement for Reliable Testing

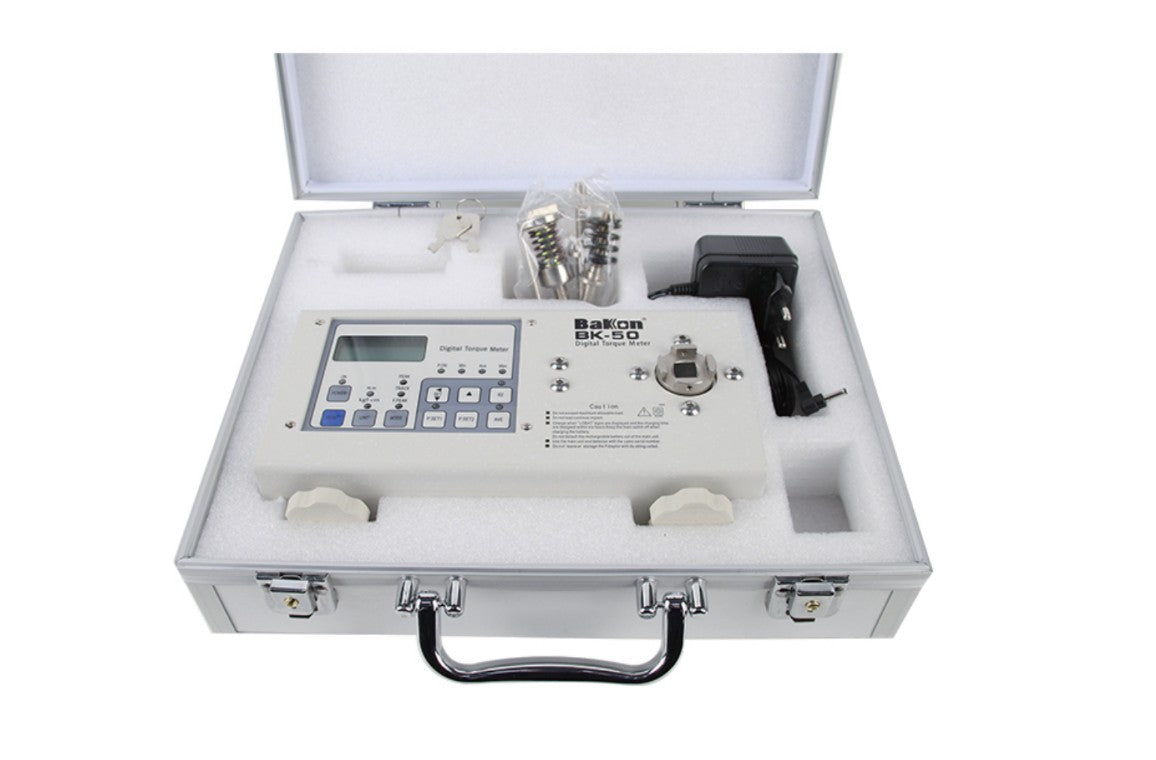

Bakon Digital Torsion Tester
BK2 | BK10 | BK20 | BK50 | BK100 | BK200C
Bakon Digital Torsion Tester is designed to measure and verify the torque of electric screwdrivers and other fastening tools. With maximum, minimum and average torque readings, adjustable testing speed, and data output capabilities, it helps ensure accurate torque measurement and consistent fastening performance.
- Auto shut-off after 10 minutes
- Calculates maximum, minimum, and average torque
- Automatic torque zeroing
- Adjustable automatic data reset
- Easy-to-read LCD display
- Adjustable torque limits with buzzer alerts
- Peak torque retention for accurate readings
- Adjustable speed from 0–1000 rpm
- Supports reverse-direction testing
- Displays negative values for reverse torque
- Built-in shockproof design for the torque sensor
- Connects to external data processing systems
- Rechargeable, compact, and lightweight
- Data output to a computer for analysis
Specifications
| Torque Tester Model | BK2 |
| Power | Five 1.2V NiMH Cells 1,000 mA |
| Accuracy | Within ±1% (At Full Scale) |
| Torque (kgf.cm) | 0.03~2 |
| Torque (Nm) | 0.003~0.2 |
| Recharge Time |
Up to 6 Hours |
| Torque Tester Model | BK10 |
| Power | Five 1.2V NiMH Cells 1,000 mA |
| Accuracy | Within ±1% (At Full Scale) |
| Torque (kgf.cm) | 0.15~10 |
| Torque (Nm) | 0.015~1 |
| Recharge Time |
Up to 6 Hours |
| Torque Tester Model | BK20 |
| Power | Five 1.2V NiMH Cells 1,000 mA |
| Accuracy | Within ±1% (At Full Scale) |
| Torque (kgf.cm) | 0.3~20 |
| Torque (Nm) | 0.03~2 |
| Recharge Time |
Up to 6 Hours |
| Torque Tester Model | BK50 |
| Power | Five 1.2V NiMH Cells 1,000 mA |
| Accuracy | Within ±1% (At Full Scale) |
| Torque (kgf.cm) | 0.75~50 |
| Torque (Nm) | 0.075~5 |
| Recharge Time |
Up to 6 Hours |
| Torque Tester Model | BK100 |
| Power | Five 1.2V NiMH Cells 1,000 mA |
| Accuracy | Within ±1% (At Full Scale) |
| Torque (kgf.cm) | 1.5~100 |
| Torque (Nm) | 0.15~10 |
| Recharge Time |
Up to 6 Hours |
| Torque Tester Model | BK200C |
| Power | Five 1.2V NiMH Cells 1,000 mA |
| Accuracy | Within ±1% (At Full Scale) |
| Torque (kgf.cm) | 7.5~500 |
| Torque (Nm) | 0.75~50 |
| Recharge Time |
Up to 6 Hours |
