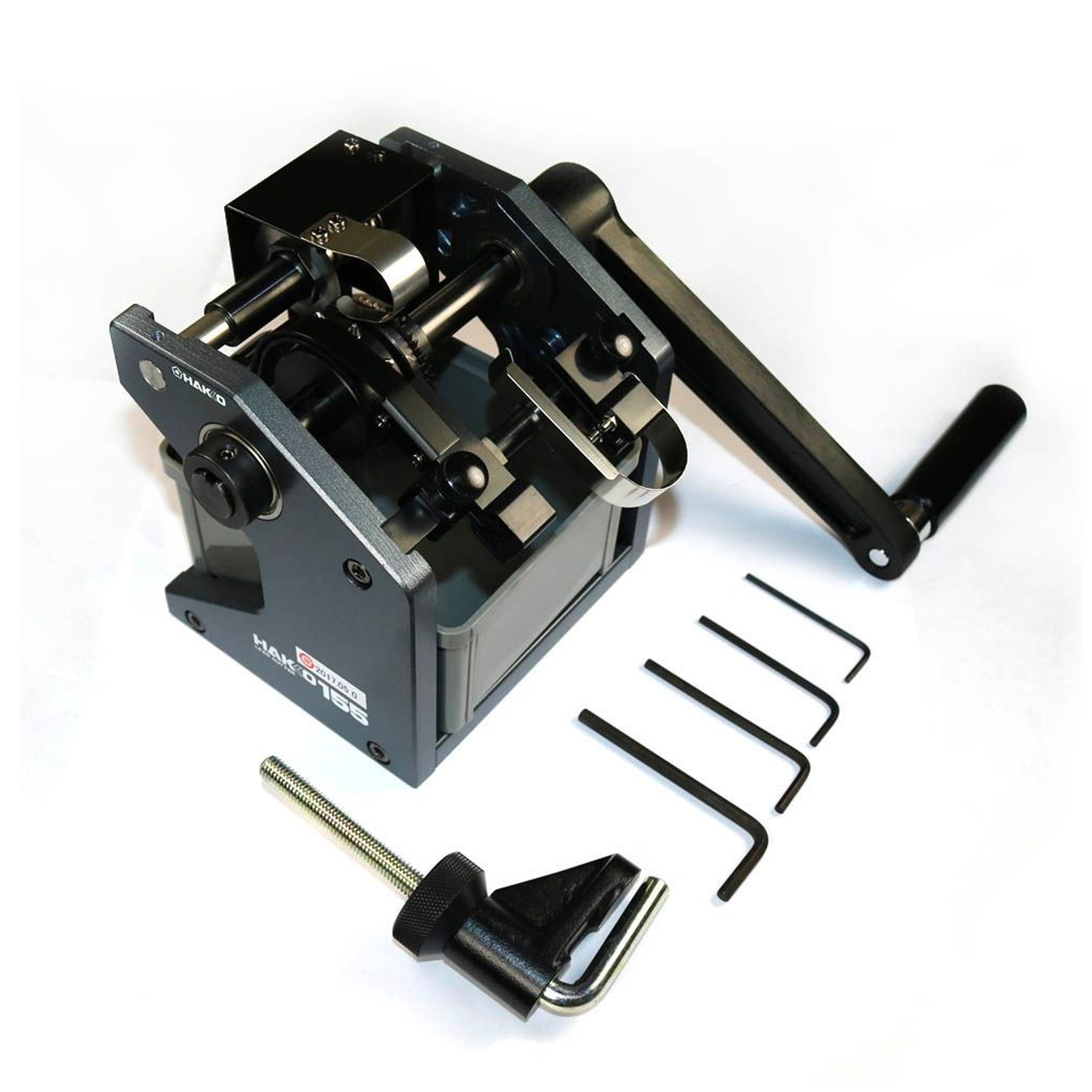

155-1 Lead Cutter

[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

• Lead cutter for radial components. Unsuitable for work on components with lead frames (square lead).
• Please note that 155-1 and 155-2 differ in product specifications.
• Possible for use together with Hakko 152B (motor drive).

Please refer to the user manual for more tips!

Features

Cutting for tape-type radial components and annealed copper lead wire

• Easy to use - simply set the taped components in place and turn the handle. The super-sharp, high quality cutting blade allows you to cut all varieties of tape-type radial parts, including resistors, capacitors, transistors, etc. cleanly and smoothly. Continuous operation ensures faster, more efficient processing.
• Sealed bearings make it long-lasting, durable and efficient.
• The compact design allows you to place it virtually anywhere.

Specifications

• Max diameter of lead wire: 0.8mm
• Lead wire: For annealed copper lead wire only
• Max processing part size: 12.5mm dia x 25mm
• Feed hole pitch: 12.7mm
• Lead pitch: 5.0mm, 2.5mm
• Min processing size: 1.5mm from taping end, 2.0mm from component end
• Dimensions: 110(W) x 140(H) x 125(D) mm
• Weight 1.7kg

*When shipped, the unit is set for components with a lead pitch of 5.0mm

*Square lead wire is not adapted

*Weight measured with handle and clamp

Replacement Parts
