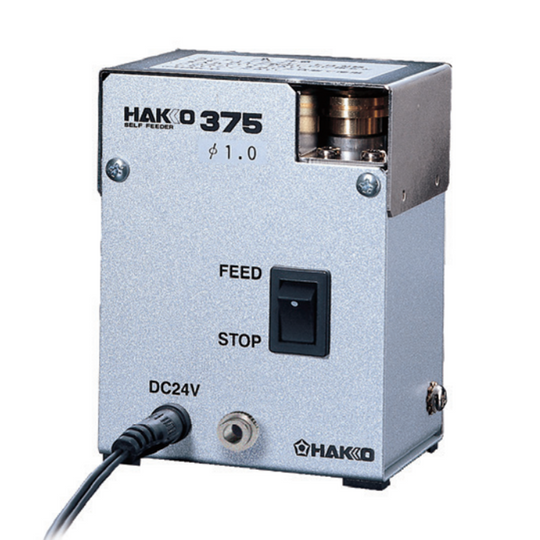

V-Groove Maker (375-1 to 375-4)

• Compact, space-saving automatic solder feeder.
• Reduces the splash of solder and flux by cutting a v-groove onto the solder surface.
• Solder feed amount can be controlled by turning the switch on or off.
• Please note that 375-01, 375-02, 375-03 and 375-04 differ in specifications of usable solder diameter.
• Please refer to the User Manual below for more detailed specifications.

Features

Optimal for minimizing solder and flux splash

Solder feeding equipment with V-grooving function for superior cost performance

Minimize solder and flux splash

• As shown below, when solder is cut with a V-groove it enables the release of gas pressure generated by the flux, thereby suppressing splash. However, because the V-groove exposes the flux to outside air the solder cannot be stored for a long period of time.
• When using solder with the HAKKO 375, you can groove the solder that you require.

Specifications

Model No. 375

• Rating : DC 24 V 75 mA
• Solder feed speed: 27mm/sec.
• Usable solder diameter: Φ0.3, Φ0.5, Φ0.6, Φ0.8, Φ1.0mm
• Dimensions: 78(W) × 98(H) × 56(D)mm
• Weight: 0.59kg

AC Adapter

• Output voltage: DC 24 V

Packing List

1. Unit
2. AC adapter
3. Instruction manual
