Click here to shop compatible tips for FX-600
- Adjustable temperature range 200-500ºC
- Replacement tips selectable from more than 30 types
- Best suited for soldering of electronic components, IC/LED and PWB
Specification
- Power consumption: 50W
- Temperature range: 200 / 270 / 320 / 370 / 420 / 500 ºC
- Temperature stability: ±1ºC at idle temperature
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Total length: 233mm (with B tip), excludes cord
- Weight: 61g (with B tip), excludes cord
Packing List
| Packing List | Part No. |
| Unit | - |
| Lock Key | B3707 |
| Standard Tip | T18-B |
Soldering Tips
| T18 Series | |
| Shape BC/C |
|
| Shape BCF/CF (Tinned cut surface only) |
|
| Shape B |
|
| Narrow pitch soldering type (Shape S) |
|
| Shape D |
|
| Shape I |
|
| Shape J |
|
| Shape K |
|
Replacement Parts
| Part Number | Product Name |
| A1601 | Heating Element, 220-240V |
| B3707 | Lock Key |
| B3694 | Knob with Screw |
| B1785 | Nut |
| B3469 | Enclosure Pipe |
| B3706 | Fixing Pipe |
Optional Parts
| Part Number | Product Name |
| B3720 | Nut and Enclosure Pipe* to convert FX-600 to FX-601 |
| FH300-81 | Iron Holder with Cleaning Sponge |
| 633-01 | Iron Holder with 599B |
| 633-02 | Iron Holder with Cleaning Sponge |
| 605M | Hakko 605 Iron Cover (m). Heat and Fire Resistant. |
Features
Superior heat conductivity
T18 series soldering tips feature an redesigned appearance and internal structure that deliver improved heat conductivity. Use these soldering tips to achieve great heat recovery without increasing power consumption.

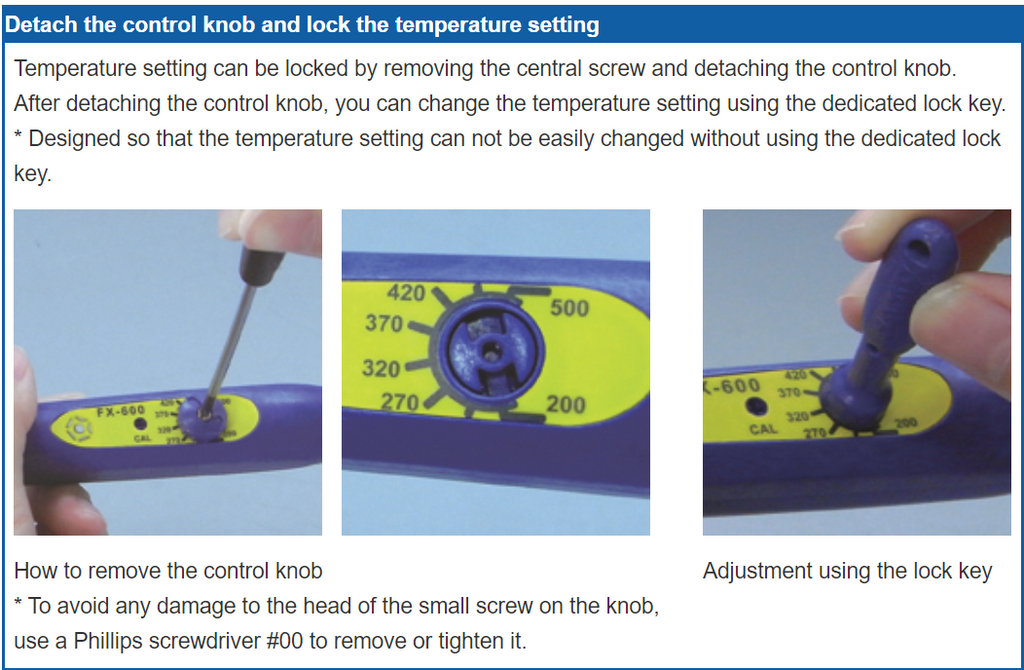

Adjust the temperature easily with the control knob
Features a temperature controller built into the grip. Easily adjust the temperature with a simple turn of the knob. Turn CAL to have more accurate temperature

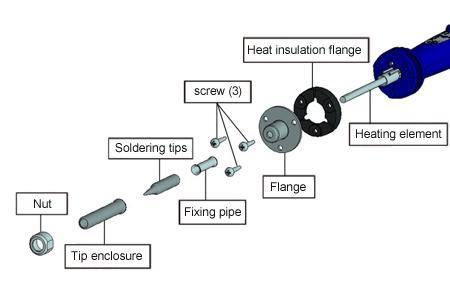

Easy Conversion
Convert FX-600 to a high heat capacity FX-601 using interchangeable parts! Reduce costs by converting to either model using interchangeable parts (Tip enclosure with Nut/Soldering Tip).
