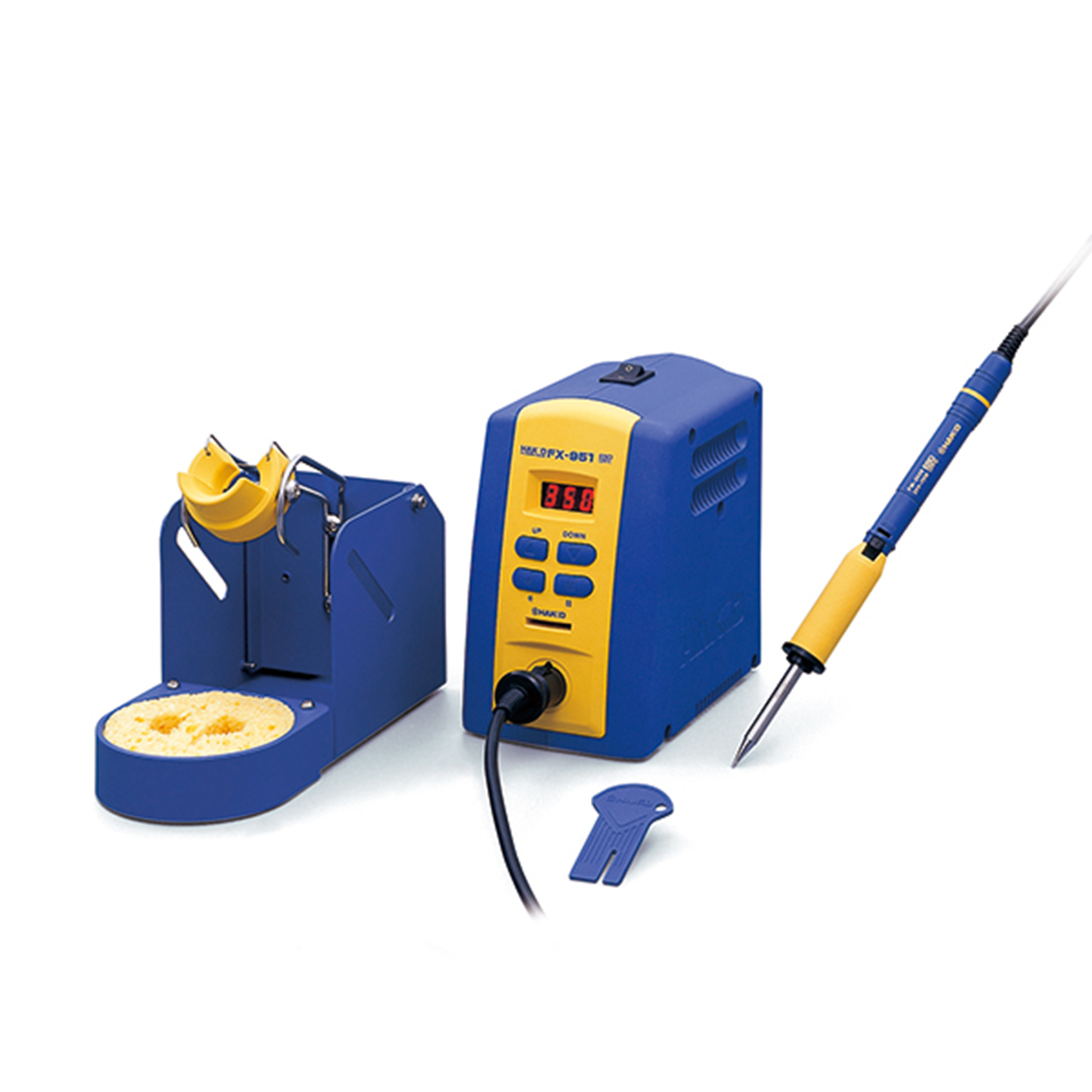

FX951-58 Soldering Station 230V

Click here to shop compatible tips for FX-951 (Tips not included).

• Compact high-power thermally-controlled soldering iron
• Standard model that ensures high thermal recovery needed for lead-free soldering
• Selectable soldering iron for N2 system or micro soldering

Please refer to the User Manual for detailed specifications.

Packing List

Features

Carefully designed station

• Our commitment to producing iron holders
• The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
• It shows HAKKO's commitment to soldering iron base stand which is used 100's of times a day.


Three Features of the Soldering Iron HAKKO FM-2028

• Interlock mechanism with the iron holder makes setting of the power-save setting easy.
• Power-save function allows minute-by-minute setting. (up to 30 minutes) 0-29mins. --- Sleep mode, 30 mins.--- Auto-power, Shut off
• Enclosed type iron holder ensures safety.

Three types of irons for a variety of soldering work

• FM-2028
  Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.

• FM-2026
  Improve solderability and wettability with the HAKKO N₂ system. *Requires a variety of equipment in addition to the N₂ soldering iron.

• FM-2032
  Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components. *Can also be used with the following stations: HAKKO FM-206 / HAKKO FM-203

Specifications

Model No. FX-951

• Power consumption: 75W
• Temperature range: 200 to 450ºC
• Temperature stability: ±5ºC at idle temperature

Station

• Output voltage: AC 24V
• Dimensions: 80(W)×130(H)×131(D)mm
• Weight: 1.2kg

Soldering Iron

• Power consumption: 70W (24V)
• Tip to ground resistance: <2Ω
• Tip to ground potential: <2mV
• Heating element: Composite heater
• Cord length: 1.2m
• Total length: 188mm (with 2.4D tip)
• Weight: 30g (with 2.4D tip)

* Total length and weight (w/o cord)

Soldering Tips

For the HAKKO FX-951, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.

Replacement Parts

Optional Parts
