High-Precision BGA Rework Stations: Advanced Component Repair and Reballing

In high-density electronics manufacturing and advanced PCBA rework, repairing Ball Grid Array (BGA) components requires absolute thermal control and perfect alignment. Toki Automation provides a comprehensive range of professional BGA rework systems engineered to meet the strict standards of specialized research labs, repair cells, and high-volume production facilities.

From intelligent optical alignment stations to fully automated detinning and reballing systems, this machinery lineup delivers the exact heat profiling, mechanical accuracy, and process repeatability needed to replace complex chips safely without risking thermal damage to the surrounding circuit board.

Key Performance Advantages of Our BGA Rework Systems

1. High-Definition Optical Alignment and Vision Tracking

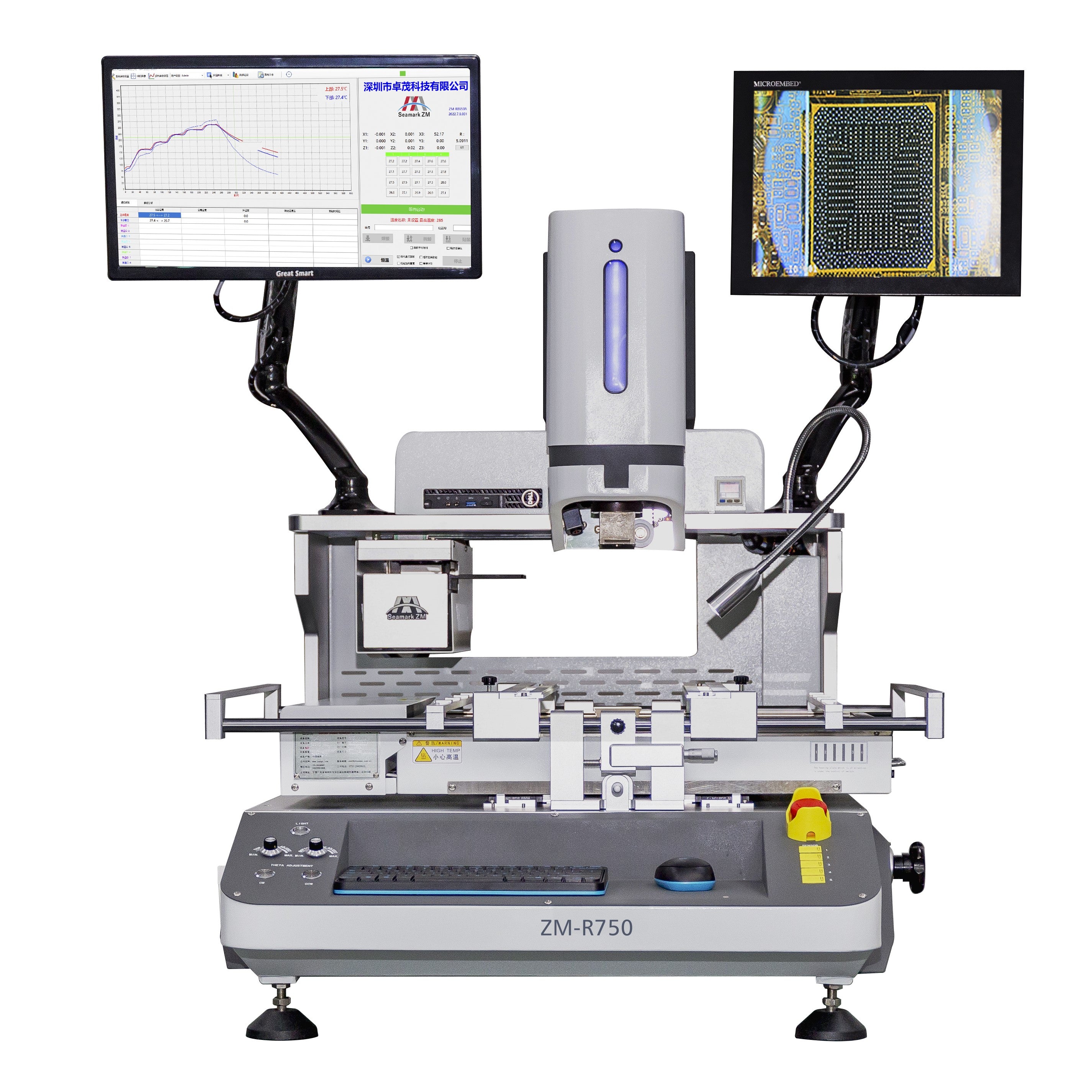

Manually placing a high-pin-count BGA component by eye is nearly impossible and risks catastrophic shorts. These advanced rework stations utilize prism-based optical alignment cameras. This technology simultaneously overlays high-resolution images of both the circuit board pads and the component's solder spheres on a digital monitor, allowing operators to achieve microscopic placement accuracy before the reflow cycle begins.

2. Multi-Zone Thermal Profiling for Lead-Free Alloys

Modern lead-free components require strict, uniform temperature controls to prevent board warping, lifted pads, or uneven joint connections. These units feature independently controlled heating zones—utilizing top hot-air, bottom hot-air, and large-area infrared (IR) pre-heaters. By managing multiple thermal zones, the station safely mimics a full-scale production reflow oven right at the rework bench.

3. Automated Cleaning, Detinning, and Reballing

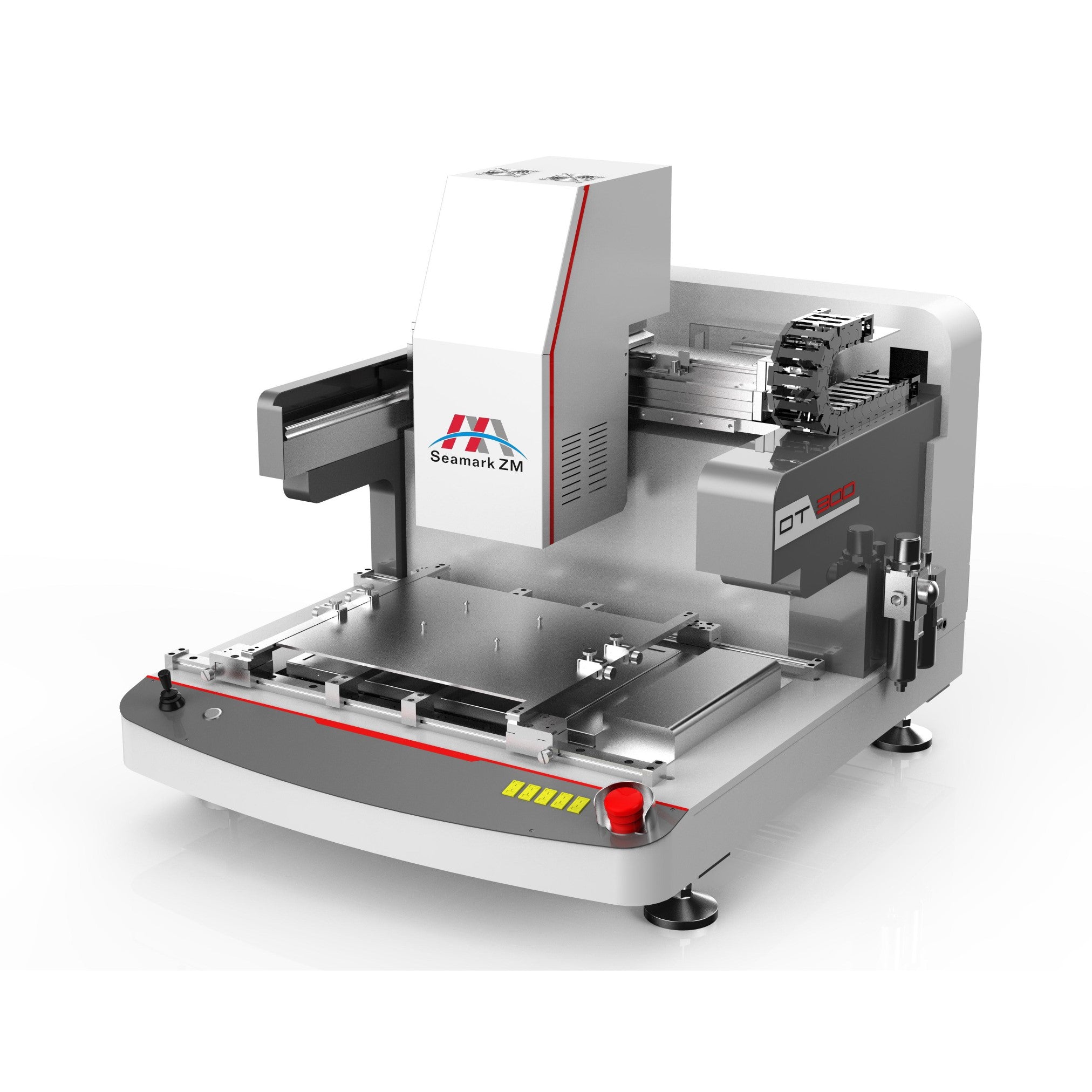

Preparing a circuit board pad for a fresh component is often a time-consuming bottleneck. Our automated systems streamline the entire component salvage cycle. The machinery quickly clears away leftover solder (detinning) and automatically positions fresh, uniform solder spheres back onto the chip footprint (reballing), massively speeding up repair cycle times and boosting production yields.

4. Scalable Systems for Dense and Large PCBAs

Whether handling delicate, fine-pitch micro-components or processing extra-large, multi-layered industrial circuit boards, this machinery line is designed for structural stability. Heavy-duty chassis and precise airflow controls prevent thermal shock on thick substrates, making these systems ideal for high-reliability manufacturing sectors.
