- Maximum temperature 540ºC
- Optimal for soldering work where a high amount of heat is required.
- Equipped with a newly designed tip which has a high thermal capacity
- Suitable to solder chassis, large connector, transformer, etc. which requires a large amount of heat
Specification
| Model No. | FX-601 |
| Power Consumption | AC230V - 46W |
| Power Consumption | AC240V - 50W |
| Temperature Range | 240 / 310 / 360 / 410 / 460 / 540 ºC |
| Temperature Stability | ±1ºC at idle temperature |
| Tip to Ground Resistance | <2Ω |
| Tip to Ground Potential | <2mV |
| Heating Element | Ceramic Heater |
| Total Length | 237mm (with 2B tip), excludes cord |
| Weight | 68g (with 2B tip), excludes cord |
Packing List
| Packing List | Part No. |
| Unit | - |
| Lock Key | B3707 |
| Standard Tip | T19-B2 |
Soldering Tips
| T19 Series | |
| Shape BC/C |
|
| Shape B |
|
| Shape D |
|
| Shape I |
|

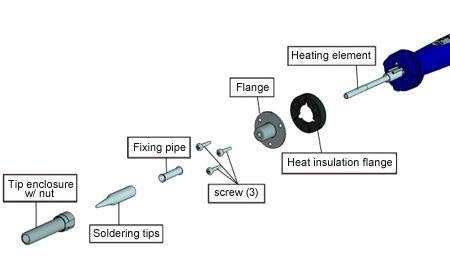

Replacement Parts
| Part Number | Product Name |
| A1601 | Heating Element, 220-240V |
| B3707 | Lock Key |
| B3694 | Knob with Screw |
| B3720 | Enclosure Pipe with Nut |
| B3706 | Fixing Pipe |
Optional Parts
| Part Number | Product Name |
| B3730 | Nut and Enclosure Pipe* to convert FX-601 to FX-600 |
| FH300-81 | Iron Holder with Cleaning Sponge |
| 633-01 | Iron Holder with 599B |
| 633-02 | Iron Holder with Cleaning Sponge |
| 605M | Hakko 605 Iron Cover (m). Heat and Fire Resistant. |
Features
Superior heat conductivity
T19 series soldering tips feature an redesigned appearance and internal structure that deliver improved heat conductivity. Use these soldering tips to achieve great heat recovery without increasing power consumption.
Compact and light weight
FX-601 has excellent heat recovery but is compact, light weight and well-balanced
Comparing with conventional heavy duty irons, FX-601 is easy and simple to handle.

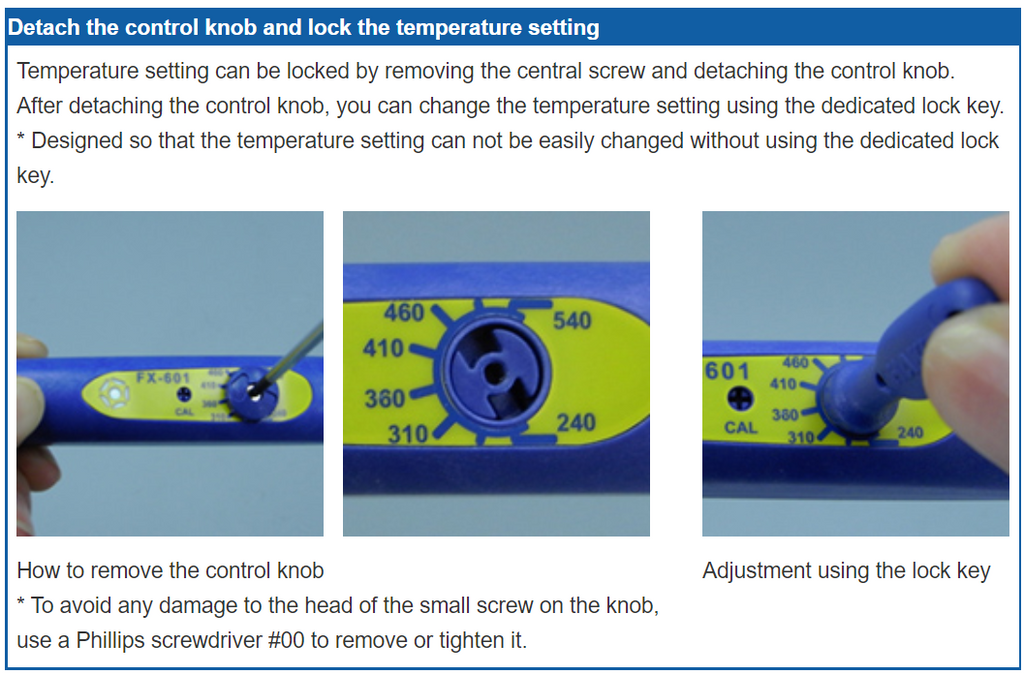

Adjust the temperature easily with the control knob
Features a temperature controller built into the grip.
Easily adjust the temperature with a simple turn of the knob.
Easy Conversion
Change parts to convert your FX-601 into a FX-600 that's optimal for soldering electronic parts! Reduce costs by converting to either model using interchangeable parts (Tip enclosure/Nut/Soldering Tip).
