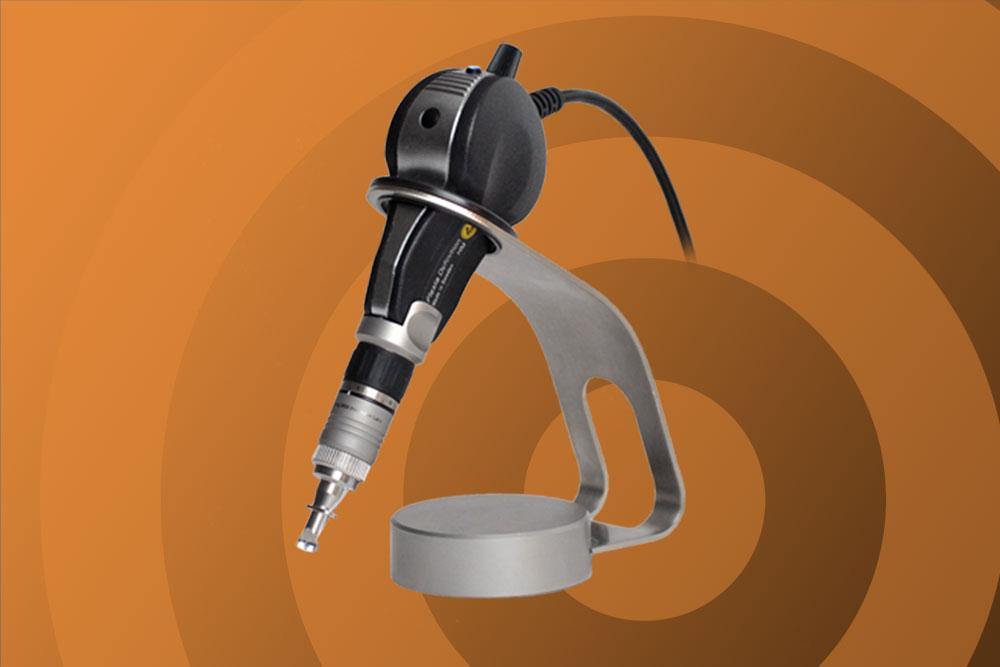

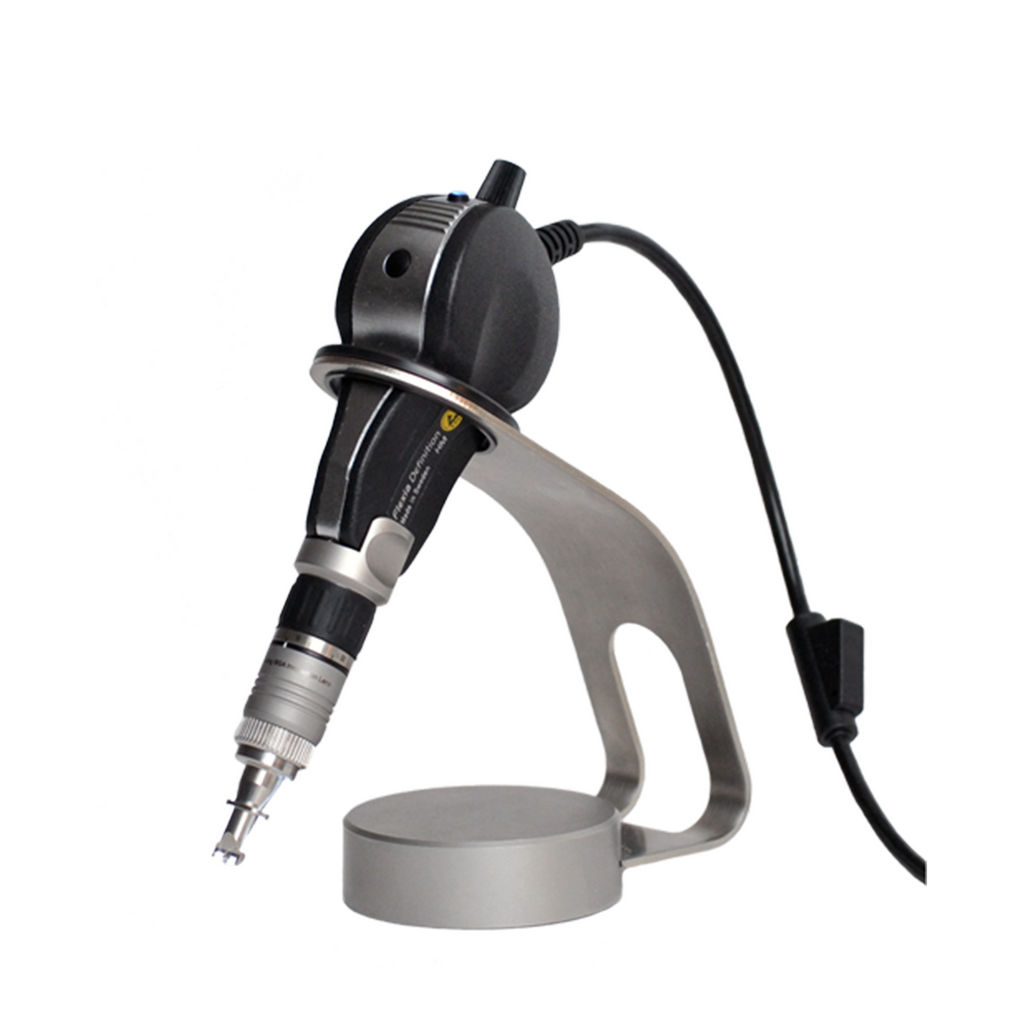

Optilia BGA Hand-Operated Inspection System - easy operation with HD images at any angle.

Optilia Extensive BGA system produces high-resolution digital images with excellent colour contrast and detailed definition. It gives detailed images of solder balls, up to 10 rows and to 40 µm component stand-off. QC and inspection made easier.

Magnification of the lenses can be changed from approximately 5x (~50 mm working distance) to 350x (~ 0.3 mm working distance).

Flexia BGA is designed for flexibility, high image quality, time and cost effectiveness based on standards of electronics manufacturers. ESD-protected and EPA approved according to EN and IEC standards.

Features

• Flexible and powerful digital vision system
• Excellent for pictures of solder balls under BGA packages
• Very fast and responsive auto focus
• Works great with OptiPix software
• Magnification of the lenses 5x - 350x

Packing List

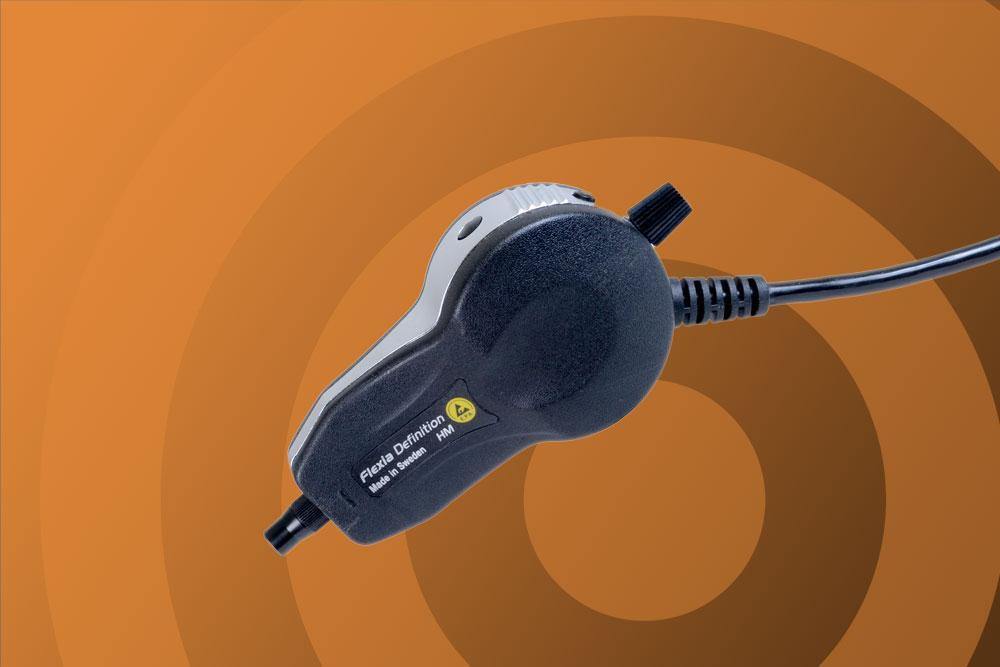

• Flexia Definition 5MP Digital HM, with 100x lens, ESD-protected
• Side Viewing BGA lens with Low Aperture 90° optical head
• OptiPix Light, image view, capture and basic on-screen measurement software
• Desk-top Holder, for Optilia Video Microscopes
• Installation CD, User’s manual and other documents
