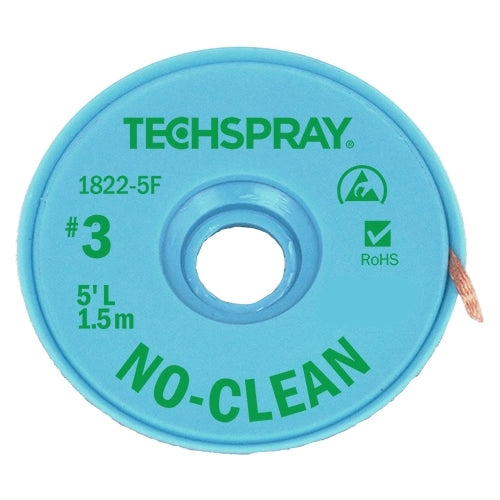

Techspray No-Clean Desoldering Braid
1822 (Wick Size #3 Green)
| Part No | Width (M) |
| 1822-5F | 5ft (1.5M) |
| 1822-10F | 10ft (3M) |
| 1822-50F | 50ft (15.2M) |
| 1822-100F | 100ft (30.5M) |
SPECIFICATIONS
Meets or Exceeds MIL-F-14256, NASA NHB 5300, 4 (34-1), NASA NPC 200-4, NASA SP5002, IPC Standard-J-STD-004
Call-outs: Celestica (1821) 8690-0576, Celestica (1822) 8690-0588, Celestica (1823) 8690-0577, HP (1821) 8690-0588, HP (1823) HP 8690-0577
For more information, please review the Technical Data Sheet and Safety Sheet.
Purchasing in bulk? Speak to our sales here.
PRODUCT INFO
Techspray No-Clean desoldering braid (wick) does not leave behind ionic flux residues that can collect and form branches called “dendrites”. Other fluxes, if not cleaned properly, can cause dendrites that grow over time and eventually cause short circuits between traces or leads. Latent failures lead to costly returns and lower the quality perception of your products.
Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed. The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick. Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.
Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed. The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick. Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.
Available in anti-static spools to prevent static build-up from damaging sensitive components.
