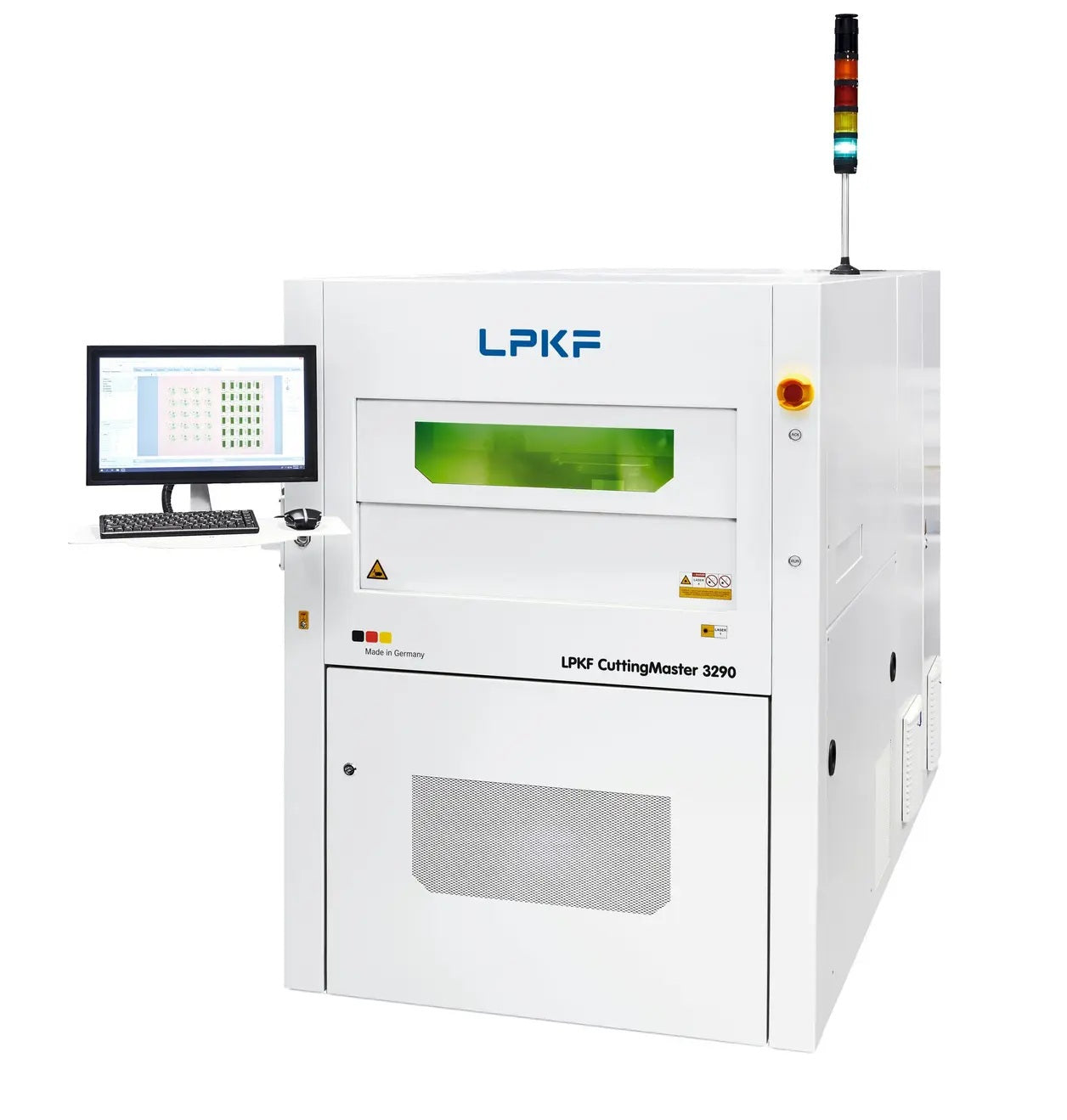

LPKF CuttingMaster 3290 - THE FUTURE OF LASER DEPANELING
The new CuttingMaster 3290 includes LPKF's Tensor Technology, making laser depaneling the best cost-effective solution for laser depaneling, even for thick FR4 Materials.
Features of LPKF CuttingMaster 3290
- Suitable for thick substrates >2.4mm in PCB thickness
- Suitable for dense or double-sided assemblies
- Increased laser lifespan (10 years)
- Manual or integrated options available
- Exceptionally clean, burr-free edges
Suitable for thick PCB Boards, Dense and Double-sided Assemblies
With 90W of laser power and LPKF's Tensor Technology, the CuttingMaster 3290 doubles the performance in FR4 applications and easily cuts even thick substrates over 2.4mm thick. It allows for component heights of up to 40mm and can quickly and precisely cut densely populated or double-sided assemblies, gently without damaging the components or board.
Increased Laser Lifespan, Improved Price-Performance Ratio
The new and improved laser source has a lifespan of up to 10 years, significantly decreasing long-term operation cost. With better laser performance and optimised process flows, it results in:
- Better productivity
- Increased yield
- Lower cycle time
- Lower waste materials
Laser depaneling systems also requires lesser maintenance, consumables replacement or manpower to operate and monitor workflow. Overall this improves the price to performance ratio, when compared to both traditional milling and older laser depaneling machines.
Fully Integrated Automation Solution
The CuttingMaster 3290 (CM3290), like many of its previous models, functions both by itself (standalone machine, manual) or as an integrated machine within the customer's production line. With Toki Automation, we can custom fit the CM3290 into your current production infrastructure, without disrupting or compromising the existing workflow.
Designed for 24 hours production, 7 days a week, this scalable laser depaneling system is ideal for those who start off manually, but wish to explore automated solutions in future.
Technical Cleanliness and Burr-Free Edges
Like all LPKF laser depaneling solutions, the new CuttingMaster 3290 features the same highly technically clean and burr-free edges. The LPKF Tensor Technology, laser source and the machine's in-built software comes together to achieve the optimum setting for perfect clean cut edges, no matter the complexity of your PCB designs or the material of your board.
